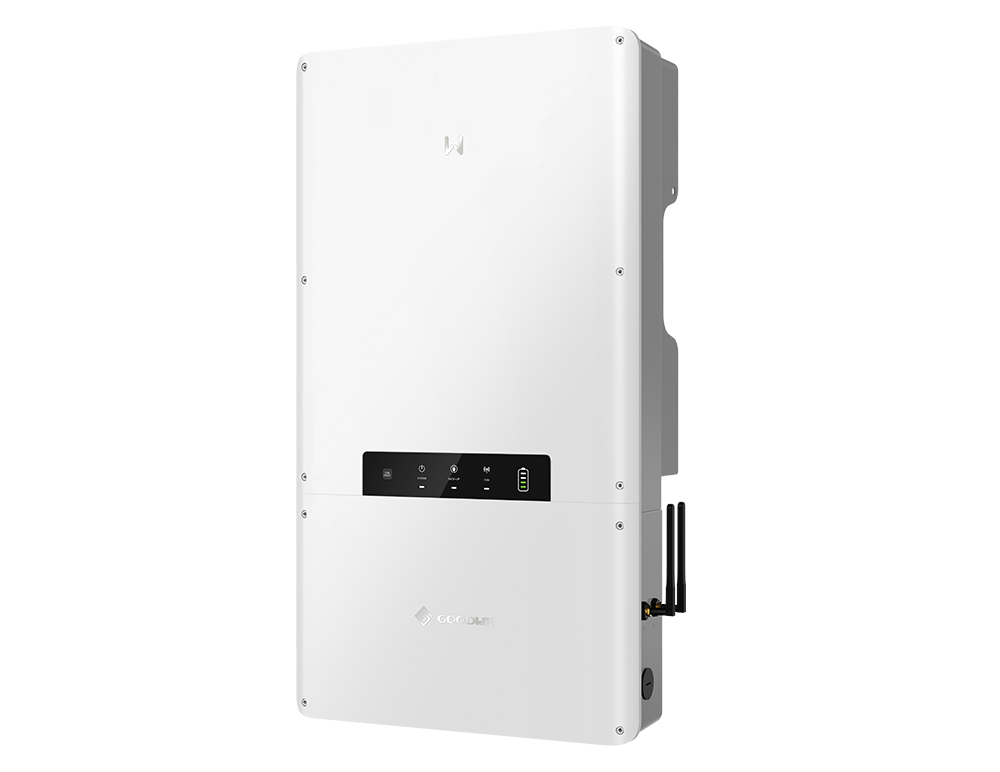

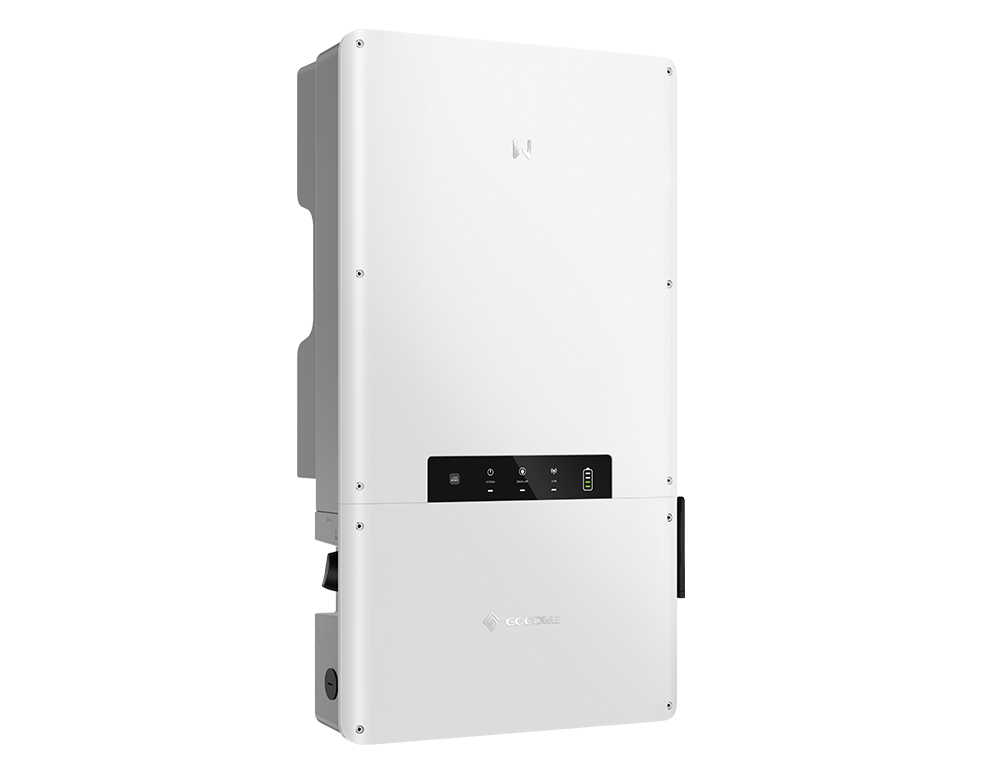

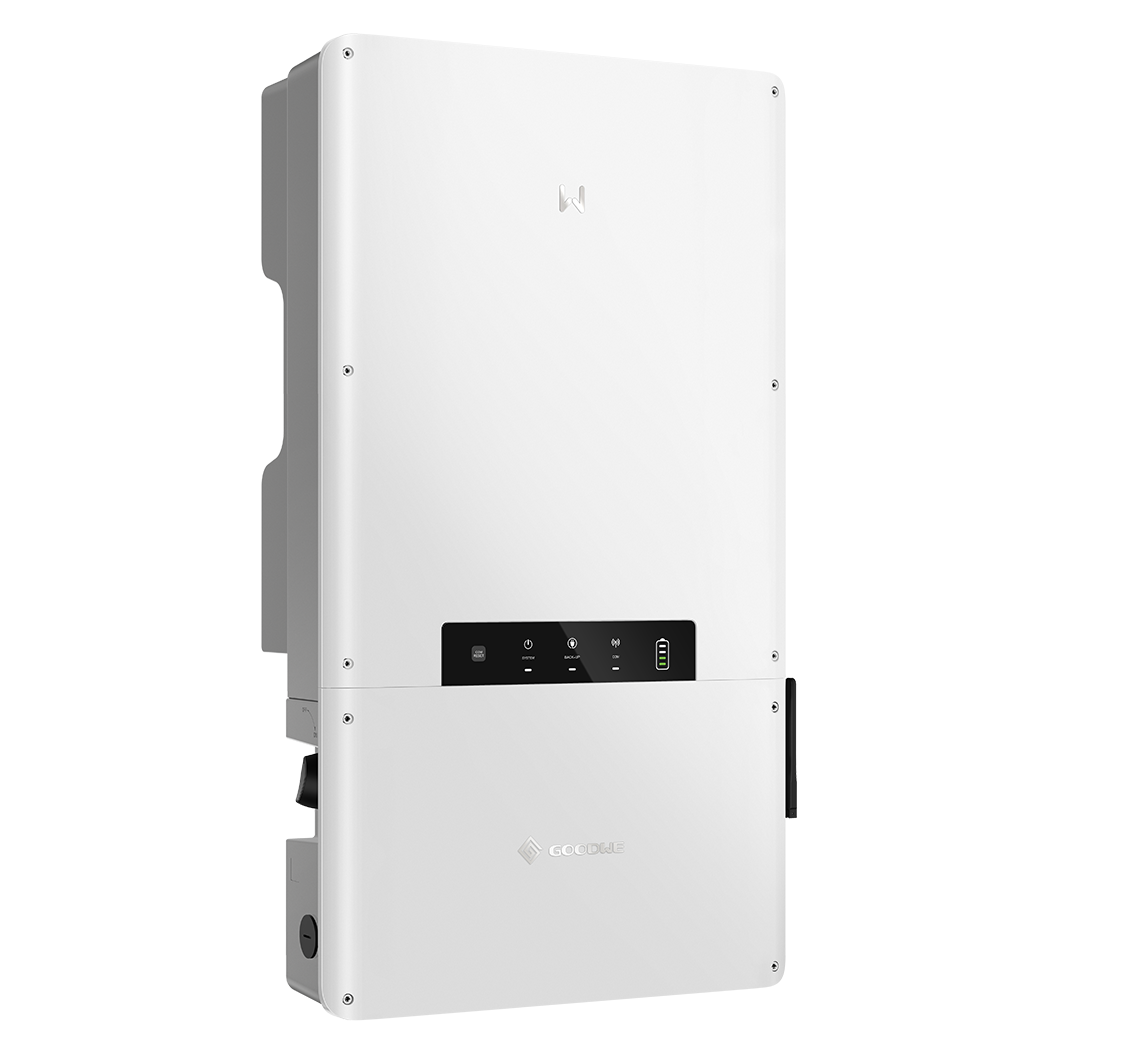

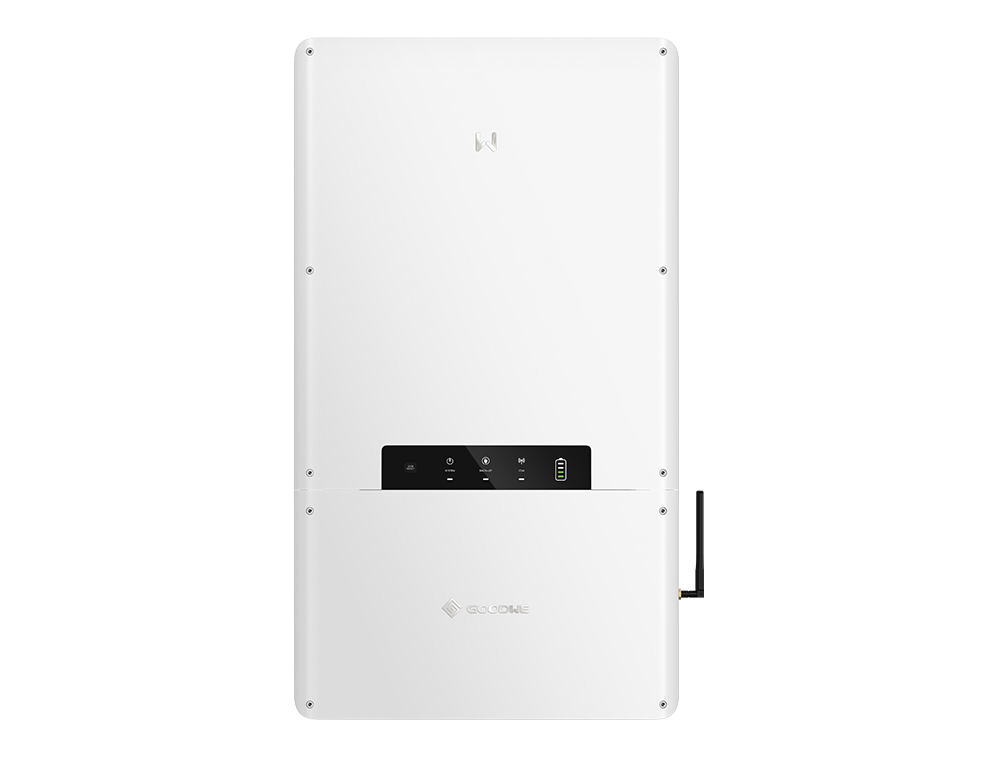

SBP-US Series
(North America Only) 5-11.4kW | Split Phase | AC-coupled retrofit inverter (HV)
DOWNLOAD PDF >>
Optional EV charger function
Micro-grid application
As an AC-coupled product, SBP-US supports off-grid applications and unbalanced output for load consumption (no extra autotransformer required). Additionally, the inverter is specially designed to offer microgrid operation during blackouts, which enables the PV system to generate power to support load consumption even when the grid is down. To better adapt to the North America market, the SBP-US is compatible with fossil fuel generators to rapidly reduce the fuel cost while maintaining stable power supply. Lastly, this retrofit inverter provides an optional EV charger function that allows users to eliminate additional hardware and plug the EV charger cable directly into the inverter.
24/7 residential backup solution
Compatible with fossil fuel generators
Unbalanced output
AC Type III SPD
Optional EV charger function
Micro-grid application
Flexible & Adaptable Applications
SBP-US is specially designed to satisfy multiple application requirements in North America. Ranging from 5-11.4kW, this AC-coupled retrofit inverter is able to perform micro-grid operation with various brands of on-grid inverters and allows the solar system to remain functional during power outage.
Micro-grid application & backup solution
Fossil fuel generator compatible
Maximize Renewable Power
Endeavoring to reduce carbon footprint is a trendy lifestyle nowadays. SBP-US could help with this from multiple dimensions while benefiting users' daily life.
EV charger function integrated
11.4kW backup support
OVERVIEW
Model
GW11K4-SBP-US20
Battery Voltage Range (V)
80 ~ 495
Max. Continuous Charging/Discharging Current (A)
50 / 50
Nominal Output Voltage (V)
240
Max. Apparent Power Output to Utility Grid (VA)
11400
Back-up Nominal Apparent Power (VA)
11400
Model
GW9600-SBP-US20
Battery Voltage Range (V)
80 ~ 495
Max. Continuous Charging/Discharging Current (A)
50 / 50
Nominal Output Voltage (V)
240
Max. Apparent Power Output to Utility Grid (VA)
9600
Back-up Nominal Apparent Power (VA)
9600
Model
GW7600-SBP-US20
Battery Voltage Range (V)
80 ~ 495
Max. Continuous Charging/Discharging Current (A)
50 / 50
Nominal Output Voltage (V)
240
Max. Apparent Power Output to Utility Grid (VA)
7600
Back-up Nominal Apparent Power (VA)
7600
Model
GW6000-SBP-US20
Battery Voltage Range (V)
80 ~ 495
Max. Continuous Charging/Discharging Current (A)
50 / 50
Nominal Output Voltage (V)
240
Max. Apparent Power Output to Utility Grid (VA)
6000
Back-up Nominal Apparent Power (VA)
6000
Model
GW5000-SBP-US20
Battery Voltage Range (V)
80 ~ 495
Max. Continuous Charging/Discharging Current (A)
50 / 50
Nominal Output Voltage (V)
240
Max. Apparent Power Output to Utility Grid (VA)
5000
Back-up Nominal Apparent Power (VA)
5000
