Stackable, auto-recognition
Plug & Play

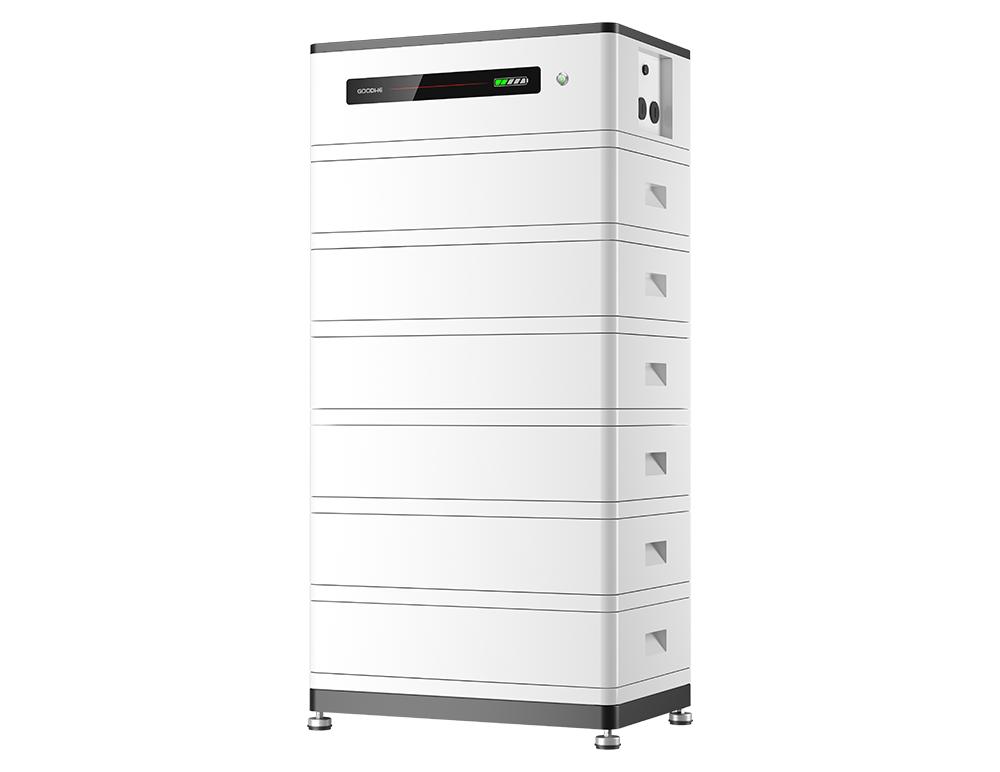

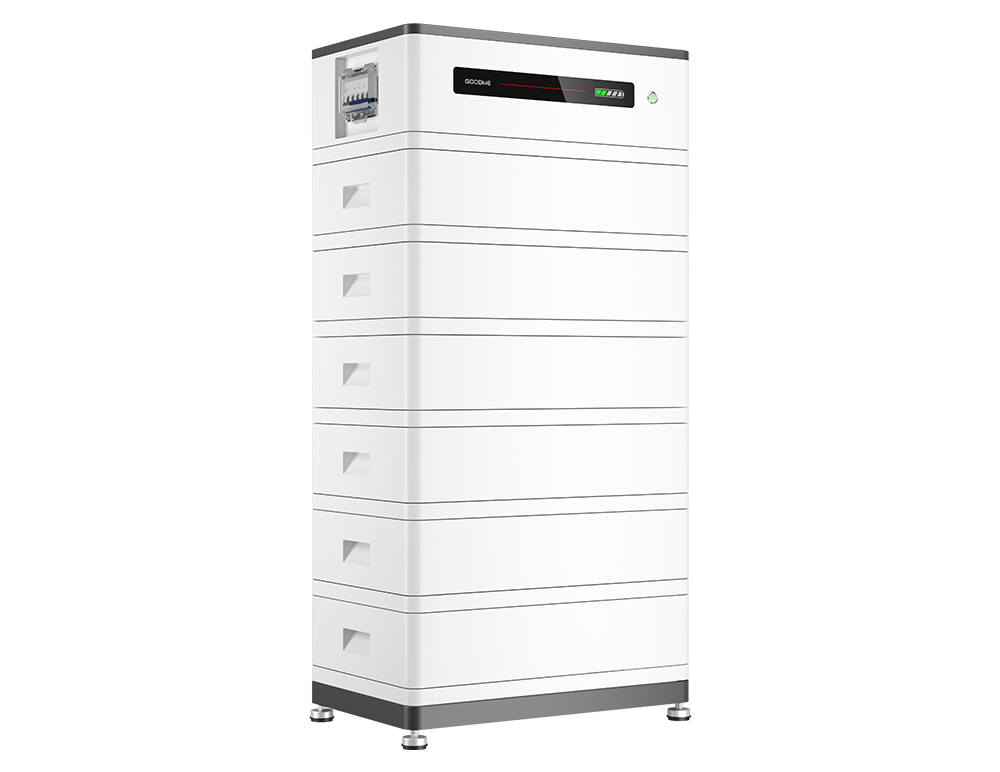

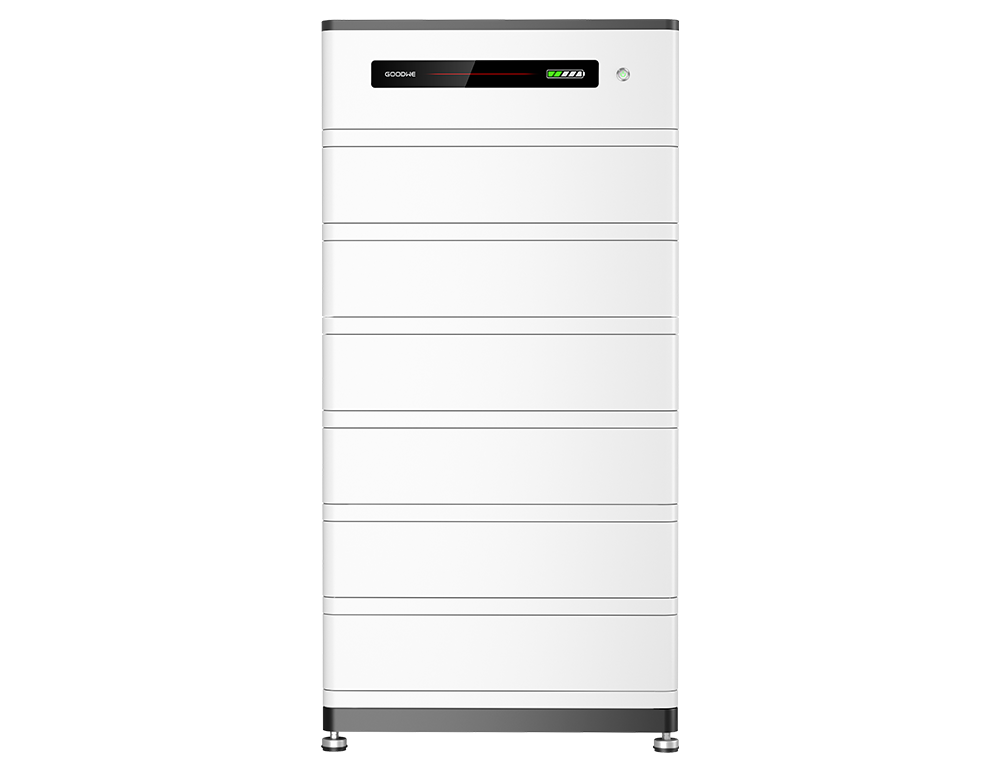

The GoodWe high-voltage battery Lynx Home FH-US Series is a perfect match for residential energy storage systems in North America. It is compatible with GoodWe ES-US/SBP-US/A-ES/A-BP inverters and offers a wide capacity range from 9.6 kWh to 19.2 kWh per stack, providing comprehensive energy storage options to meet demanding project requirements from self-consumption optimization to backup power. The stackable self-detecting modules make the system especially simple to install and maintain. Meanwhile, the reliable lithium iron phosphate (LFP) cell technology ensures maximum safety and a longer life cycle.
Remote diagnosis & update
Up to 8 towers in parallel
IP55 protection for outdoor installation safety
Auto reboot after undervoltage
Stackable, auto-recognition
Plug & Play
Smart Control for Smart Energy
Lynx Home FH-US Series accommodates smart remote monitoring of the whole energy storage system and remote update. It can also automatically reboot if the supply voltage is high enough again after an undervoltage fault occurs. Take smart control of your smart energy.
Remote diagnosis & update
Auto reboot after undervoltage
Fully Integrated Design
The stackable auto-recognition modules are built for ultra-simplified assembly, and pre-wired communication cables provide Plug & Play wiring to skip the complex internal wiring and commissioning, bringing fast installations for an easy start.
Stackable auto-recognition modules
Plug & Play wiring
Flexible & Adaptable Applications
Featuring compatibility with GoodWe A-ES/A-BP/ES-US/SBP-US energy storage inverters, Lynx Home FH-US Series is an ideal choice to support the GoodWe one-stop energy storage solution for North America. It accommodates remote monitoring of the whole energy storage system with a single App on-the-go, saving the bother of cross-platform management.
4
Compatible with GoodWe ES-US/SBP-US/A-ES/A-BP inverters
8
Up to 8 towers in parallel
1,3
Suitable for 1 and 3 phase, hybrid and retrofit inverters
OVERVIEW
Model
LX F9.6-30
Usable Energy (kWh)
9.6
Nominal Voltage (V)
192
Nominal Charging / Discharging Current (A)
35
Mounting Method
Ground-Mounted
Ingress Protection Rating
IP65
Model
LX F12.8-30
Usable Energy (kWh)
12.8
Nominal Voltage (V)
256
Nominal Charging / Discharging Current (A)
35
Mounting Method
Ground-Mounted
Ingress Protection Rating
IP65
Model
LX F16.0-30
Usable Energy (kWh)
16
Nominal Voltage (V)
320
Nominal Charging / Discharging Current (A)
35
Mounting Method
Ground-Mounted
Ingress Protection Rating
IP65
Model
LX F19.2-30
Usable Energy (kWh)
19.2
Nominal Voltage (V)
384
Nominal Charging / Discharging Current (A)
35
Mounting Method
Ground-Mounted
Ingress Protection Rating
IP65
