Backup
In-built Meter

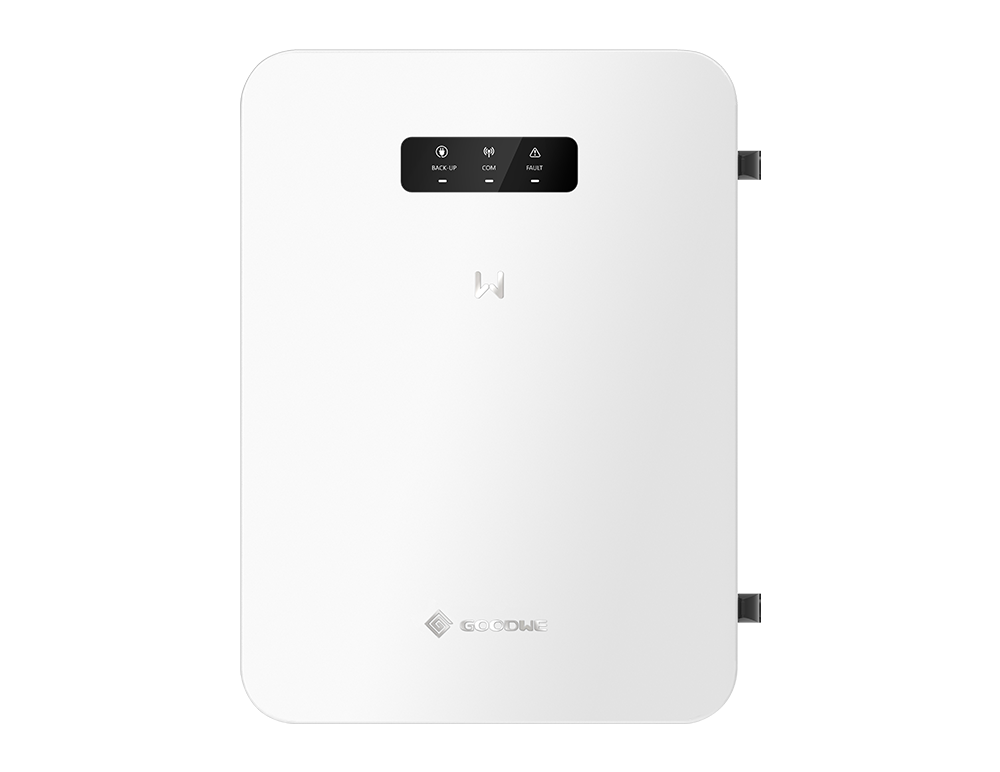

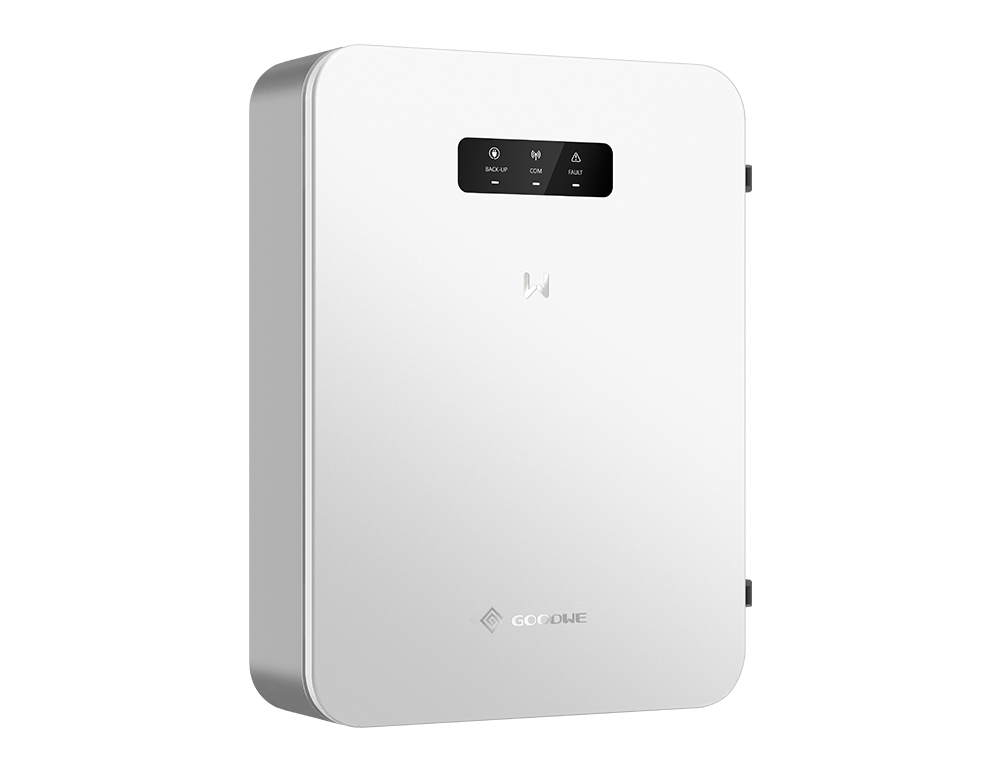

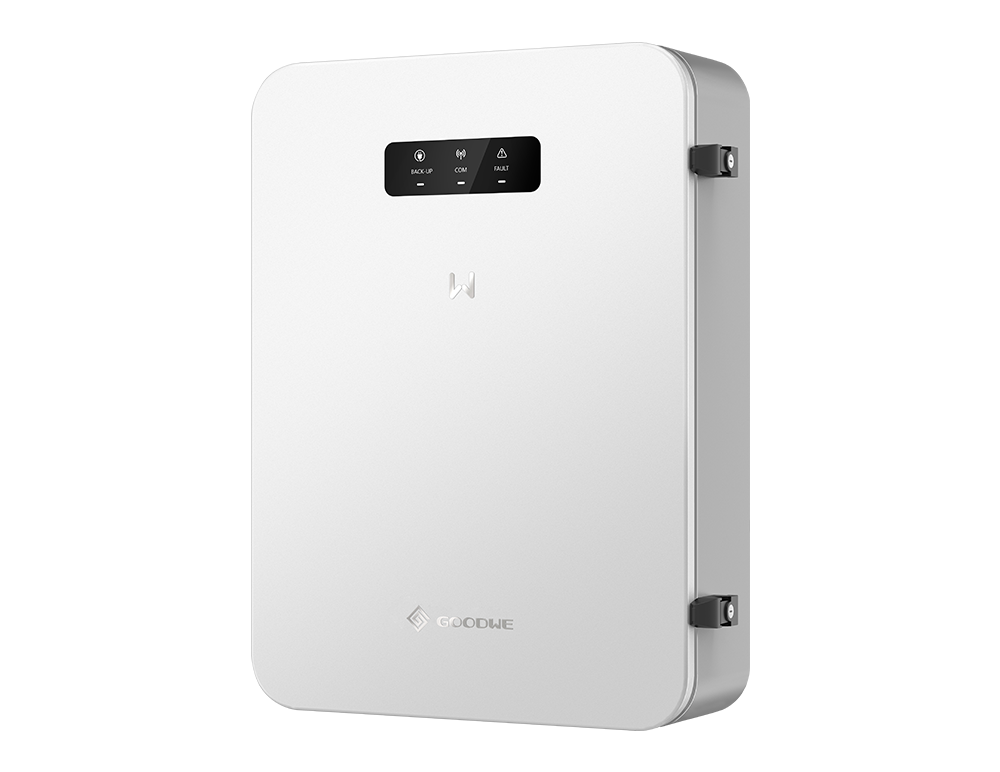

The Automatic Backup Device (ABD) is compatible with the GoodWe ES-US and SBP-US, enabling energy backup for North American homeowners. Its built-in Smart Meter (North America) can be connected with up to 4 CTs, monitoring most of a home’s appliances with higher precision than alternatives.
24/7 residential backup solution
High precision of load monitoring
Perfect compatibility with ES-US & SBP-US
Low voltage ride through
Backup
In-built Meter
OVERVIEW
Model
ABD100-63-US10
Feed-in Type
Split Phase
Dimension (W × H × D)
17.7 × 24 × 5.9 in (450 × 610 × 150 mm)
Operating Temperature Range
-13°F ~ 140°F (-25°C ~ 60°C)
Max. Operating Altitude
9842ft (3000m)
Ingress Protection Rating
Type 3R, IP44
Model
ABD100-40-US10
Feed-in Type
Split Phase
Dimension (W × H × D)
17.7 × 24 × 5.9 in (450 × 610 × 150 mm)
Operating Temperature Range
-13°F ~ 140°F (-25°C ~ 60°C)
Max. Operating Altitude
9842ft (3000m)
Ingress Protection Rating
Type 3R, IP44
Model
ABD200-63-US10
Feed-in Type
Split Phase
Dimension (W × H × D)
17.7 × 24 × 5.9 in (450 × 610 × 150 mm)
Operating Temperature Range
-13°F ~ 140°F (-25°C ~ 60°C)
Max. Operating Altitude
9842ft (3000m)
Ingress Protection Rating
Type 3R, IP44
Model
ABD200-40-US10
Feed-in Type
Split Phase
Dimension (W × H × D)
17.7 × 24 × 5.9 in (450 × 610 × 150 mm)
Operating Temperature Range
-13°F ~ 140°F (-25°C ~ 60°C)
Max. Operating Altitude
9842ft (3000m)
Ingress Protection Rating
Type 3R, IP44
