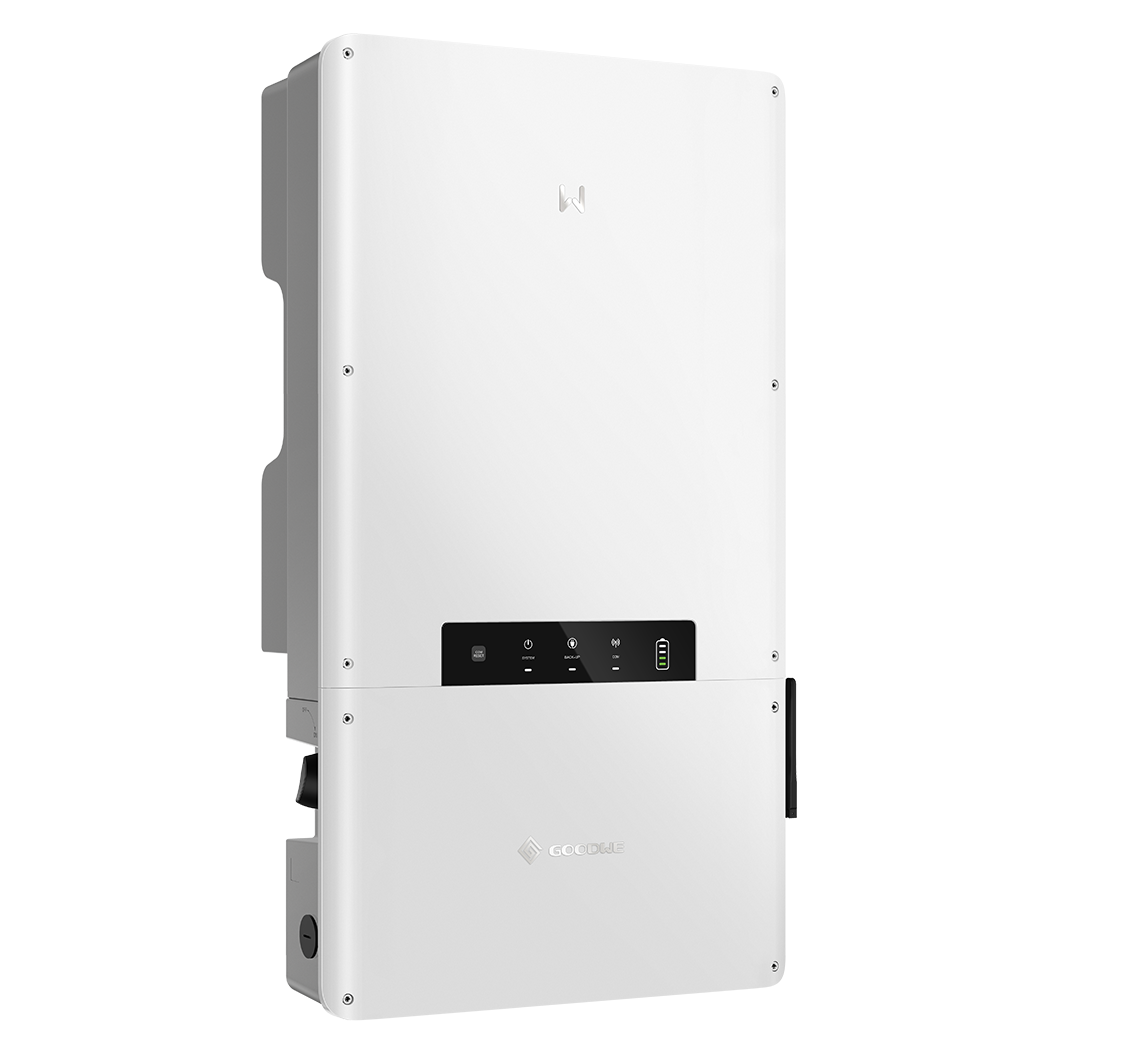

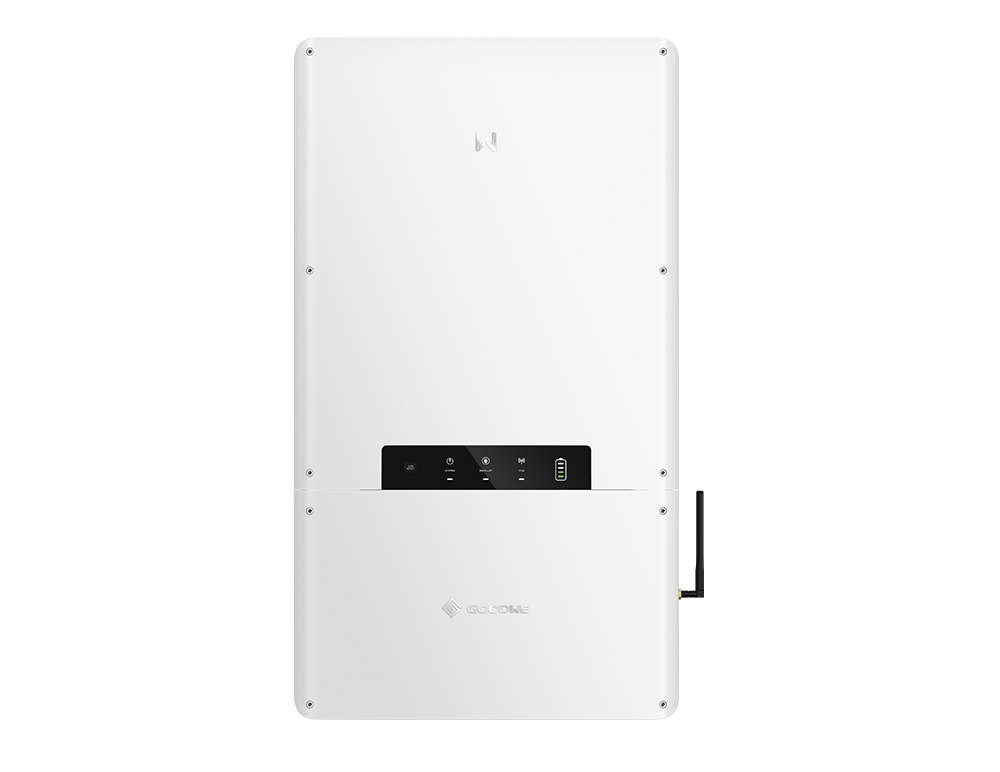

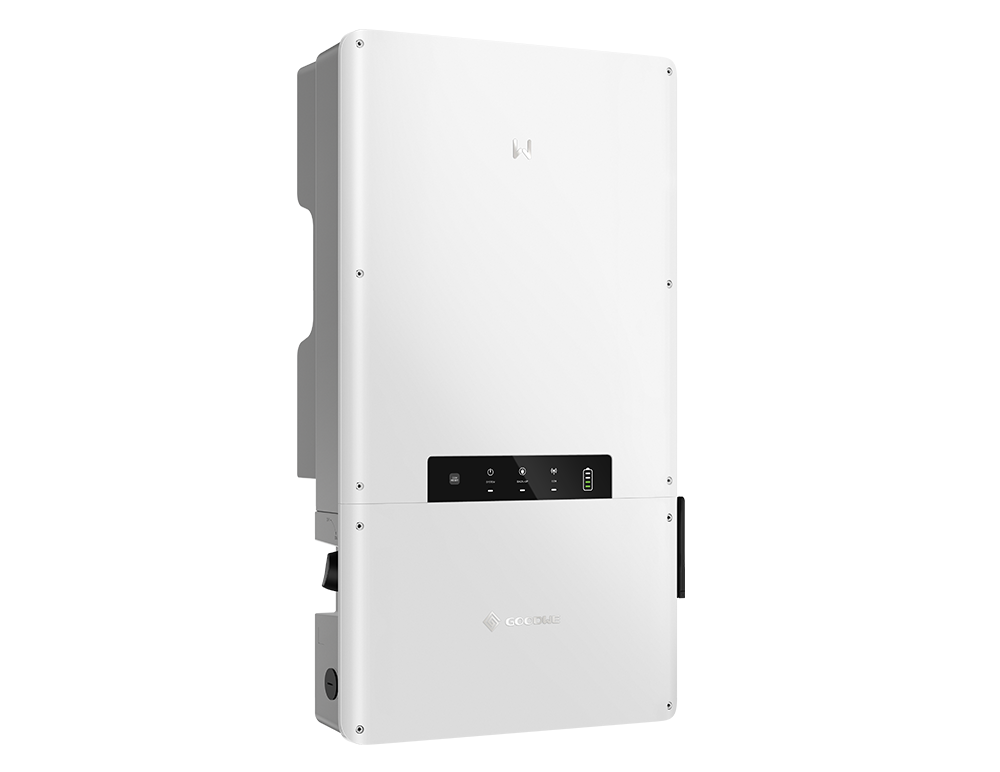

ES-US Series
5-11.4kW | Split phase | up to 4 MPPTs | Hybrid inverter (HV)
DOWNLOAD PDF >>
4 MPPTs
Smart Monitoring
GoodWe ES-US Series is a split-phase hybrid inverter designed to increase the self-consumption of your generated solar energy. GoodWe ES-US is compatible with high voltage (80-495V) batteries with a power capacity ranging from 5 kW to 11.4kW. With up to 4 MPPTs, the ES-US inverter seamlessly adapts to complex residential rooftops. The ES-US Series features an optional EV Charger function, enabling electric vehicles to charge using either self-generated solar power or grid electricity, with scheduling conveniently managed through the SolarGo app.
Built-in optimization eliminates the need for traditional optimizers
Optional EV charger integration simplifies charging management
Integrated AFCI & rapid shutdown
Larger power classes offer installers more options
4 MPPTs
Smart Monitoring
Fully Integrated Design
The ES-US is in a class of its own when it comes to delivering high quality, versatile PV and storage solutions to homeowners. With multiple options for storage including essential load backup, the ES-US leads the way in next-generation home energy management. Its integrated AFCI and rapid shutdown simplify installation and commissioning while giving homeowners maximum safety and investment security.
Larger power classes offer installers more options
Integrated AFCI & rapid shutdown
Maximum Energy Production
The ES-US offers larger power classes with up to 16A max. DC input current per string, enabling greater module compatibility and system design flexibility for installers. Its integrated rapid shutdown technology speeds installation while 150% DC oversizing capability and wide voltage window offer homeowners greater energy production throughout the day. Built-in optimization effortlessly addresses complex rooftops and shaded areas without the need for traditional module-level optimizers, which can add cost and complexity to a system.
Optimization built-in
Up to 4 MPPTs
OVERVIEW
Model
GW11K4-ES-US20
Battery Voltage Range (V)
80 ~ 495
Max. Continuous Charging/Discharging Current (A)
50/50
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
11400
Back-up Nominal Apparent Power (VA)
11400
Model
GW9600-ES-US20
Battery Voltage Range (V)
80 ~ 495
Max. Continuous Charging/Discharging Current (A)
50/50
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
9600
Back-up Nominal Apparent Power (VA)
9600
Model
GW7600-ES-US20
Battery Voltage Range (V)
80 ~ 495
Max. Continuous Charging/Discharging Current (A)
50/50
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
7600
Back-up Nominal Apparent Power (VA)
7600
Model
GW6000-ES-US20
Battery Voltage Range (V)
80 ~ 495
Max. Continuous Charging/Discharging Current (A)
50/50
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
6000
Back-up Nominal Apparent Power (VA)
6000
Model
GW5000-ES-US20
Battery Voltage Range (V)
80 ~ 495
Max. Continuous Charging/Discharging Current (A)
50/50
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
5000
Back-up Nominal Apparent Power (VA)
5000
