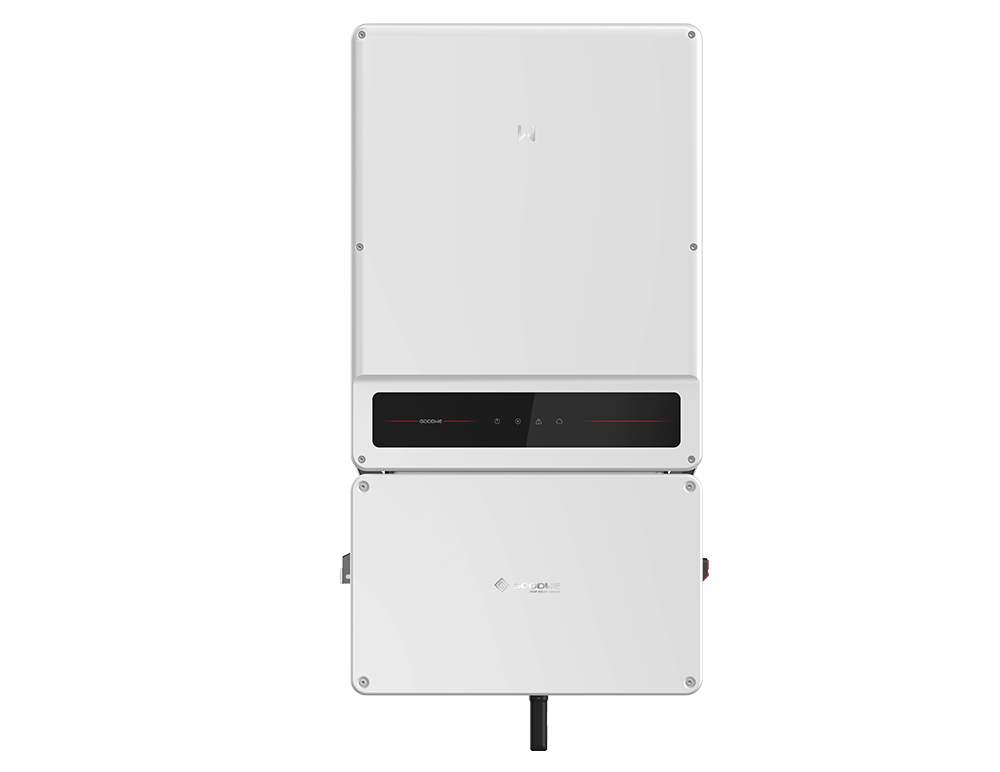

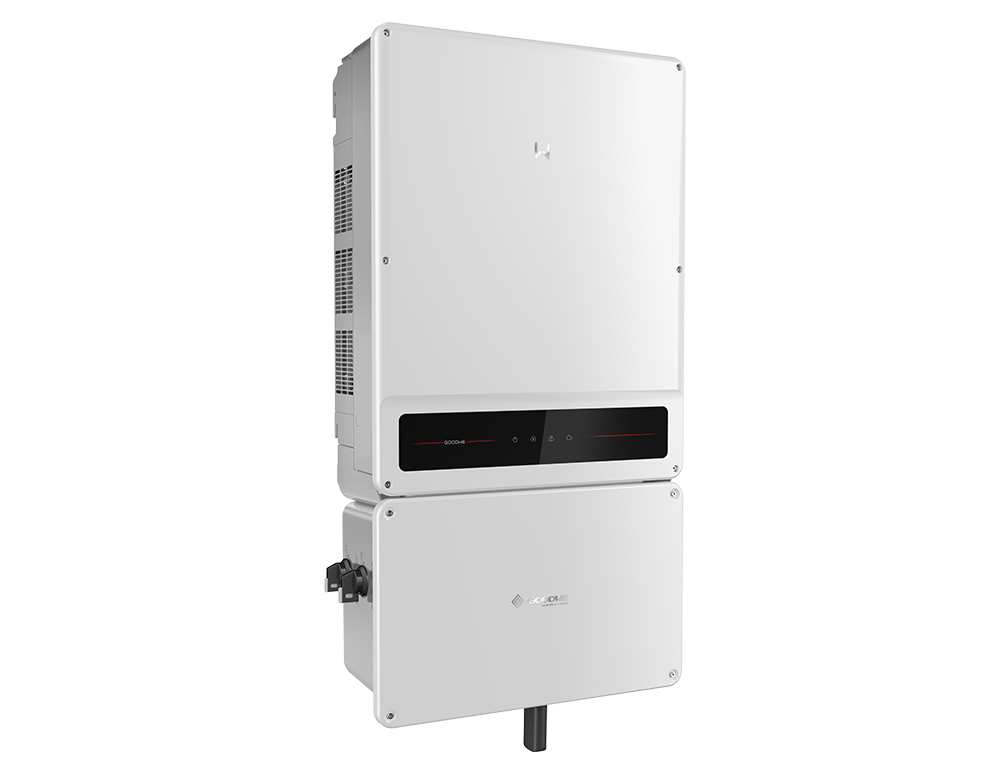

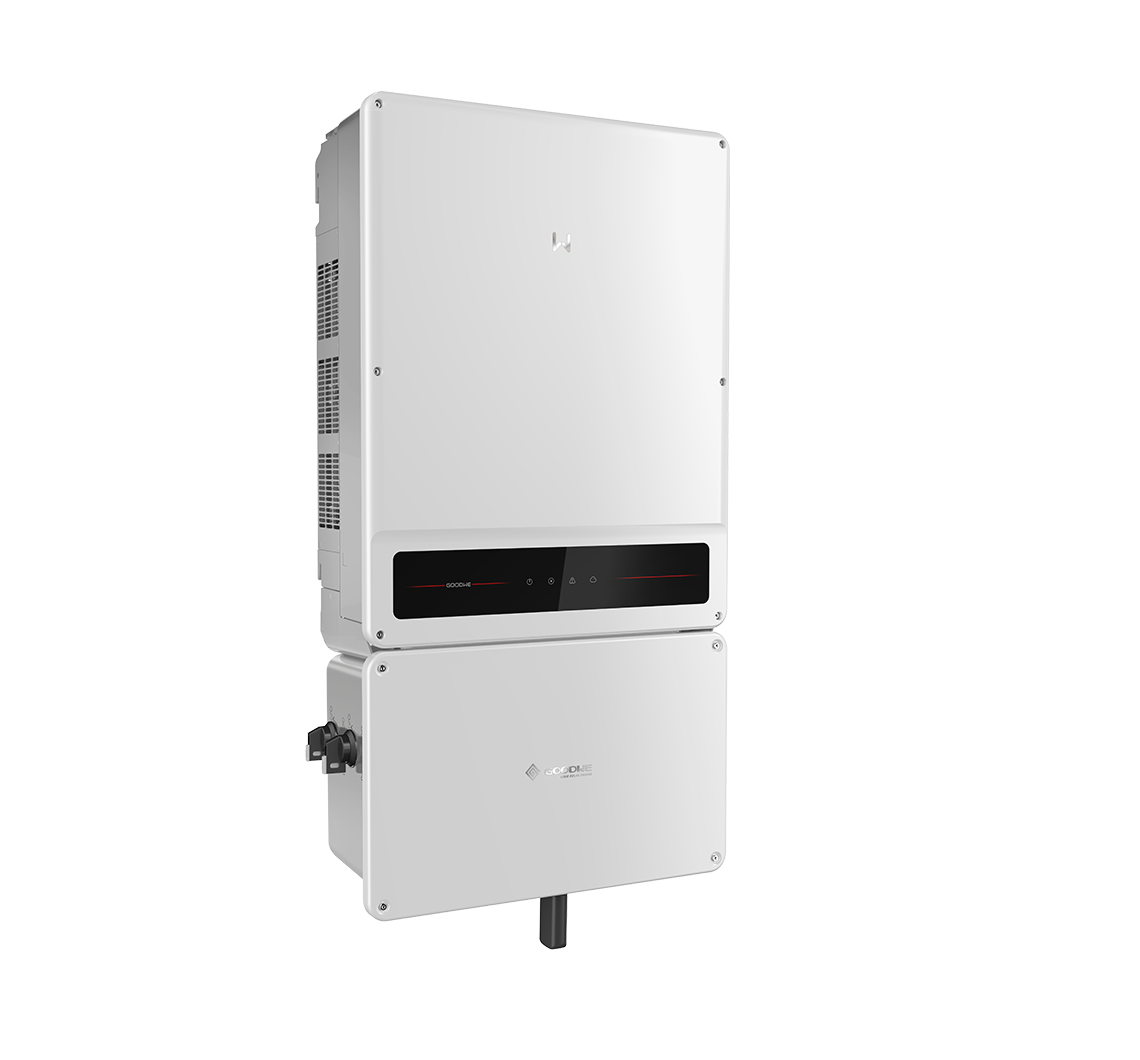

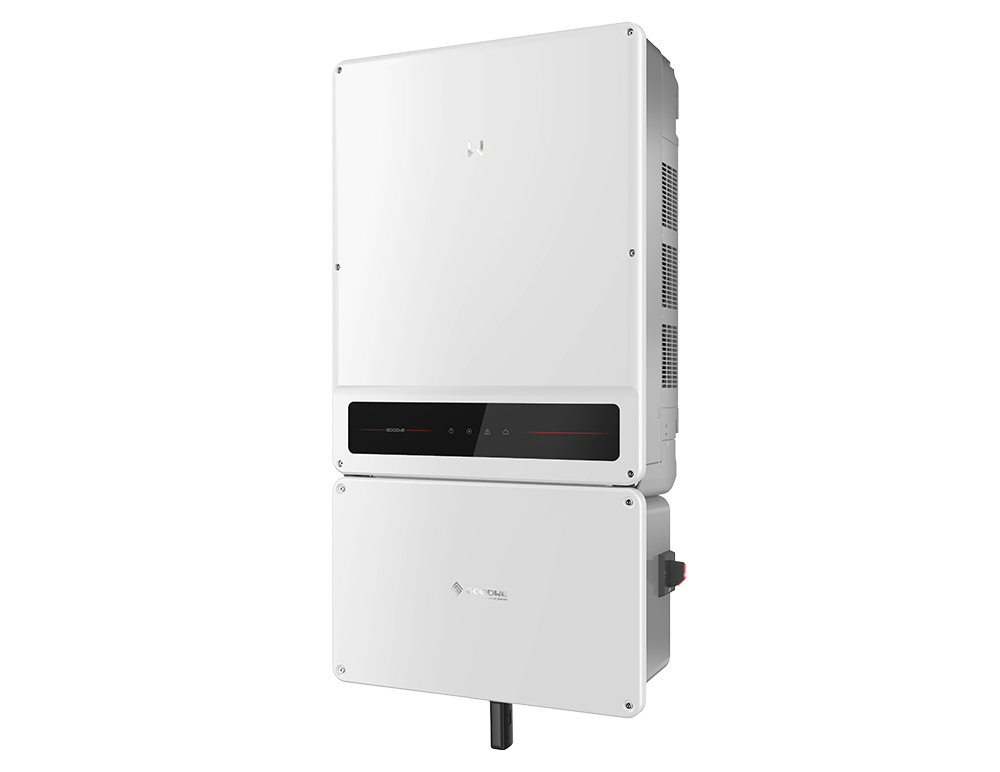

LVSMT-US Series
Three Phase | Up to 4 MPPTs | 1000Vdc
22/28kW at 208V | 23/30kW at 220V | 25/32kW at 240V
DOWNLOAD PDF >>
AFCI Integrated
UL certified
Expanding its C&I inverter solutions suite, the GoodWe low voltage inverter LVSMT-US is designed for small C&I installations and offers a maximum efficiency of 97.5% and a CEC efficiency of 96.5%. It is an advanced and cost-effective string inverter with up to 4 MPPTs, optimizing power output and eliminating the need for MLPE. Additionally, it meets rapid shutdown standards without requiring additional hardware. Its flexibility allows the inverter to be set to different grid voltages during commissioning: 208V, 220V, 240V – one inverter does it all. This improves the levelized cost of electricity (LCOE) for the asset owner while reducing installation time on the roof.
Built-in optimizing functions eliminating the need for rooftop optimizers
Latest string technology
NEMA Type 4X rated for indoor or outdoor use
180V-950V wide input operating voltage range
fuse free design
Smart shadow scan
AFCI Integrated
UL certified
Superb Safety & Reliability
The LVSMT-US inverter prioritizes safety with its built-in Type II Surge Protection on both DC and AC sides, ensuring robust defense against electrical surges. Integrated AFCI and rapid shutdown features further enhance safety by mitigating the risks of arcing faults. Additionally, its NEMA Type 4X rating ensures reliable operation and protection, making it suitable for both indoor and outdoor installations.
Built-in Type II Surge Protection for both DC and AC
Integrated AFCI and rapid shutdown
NEMA Type 4X rated for indoor or outdoor use
Maximum Return on Investment
The LVSMT-US inverter boasts a wide input operating voltage range of 180V-950V, accommodating diverse solar panel configurations. With up to 4 MPPTs, each supporting 2 inputs, the inverter offers maximum flexibility and optimization for different installation scenarios. Additionally, it supports 180% DC input oversizing, ensuring that your solar system can capture and convert more energy, even during peak sunlight hours, enhancing overall efficiency and financial returns.
950
180V-950V wide input operating voltage range
4
Up to 4 MPPTs enabling power optimized rooftop designs
180%
180% DC input oversizing
OVERVIEW
Model
GW28KLV-SMT-US
Max. Input Voltage (V)
1000
Max. Input Current per MPPT (A)
32
Max. Input Current per MPPT (A)/Number of Strings per MPPT
4/2
Max. Efficiency
97.5%
Nominal AC Grid Voltage (V)
208/220/240, 3L/N/PE or 3L/PE
Model
GW22KLV-SMT-US
Max. Input Voltage (V)
1000
Max. Input Current per MPPT (A)
32
Max. Input Current per MPPT (A)/Number of Strings per MPPT
3/2
Max. Efficiency
97.5%
Nominal AC Grid Voltage (V)
208/220/240, 3L/N/PE or 3L/PE
