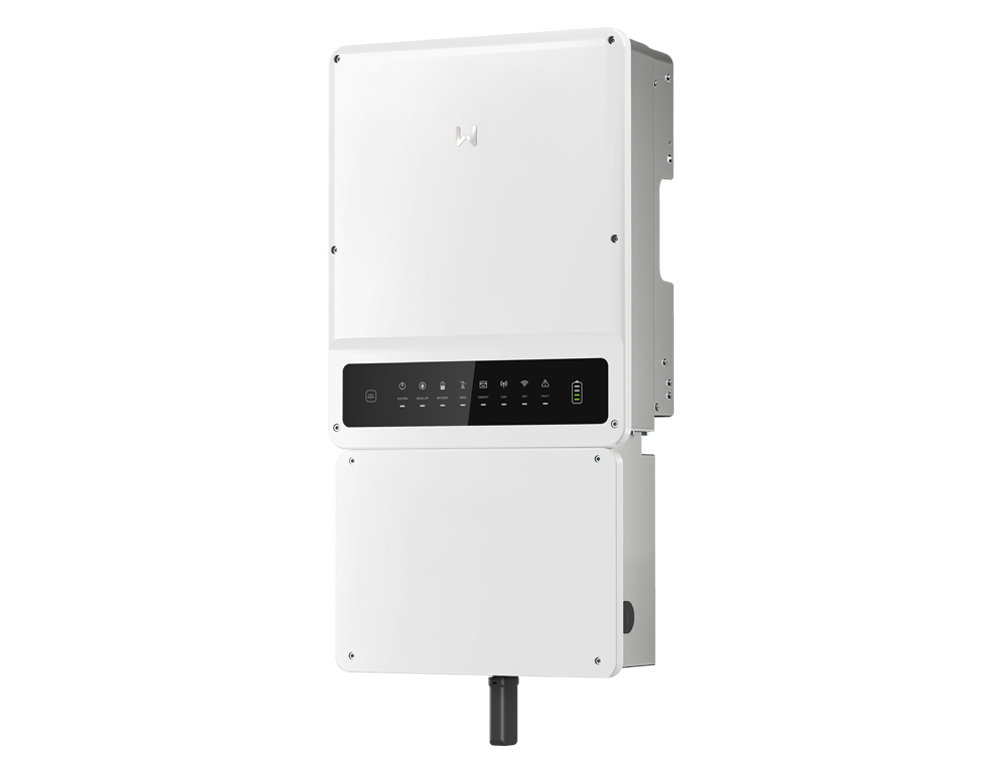

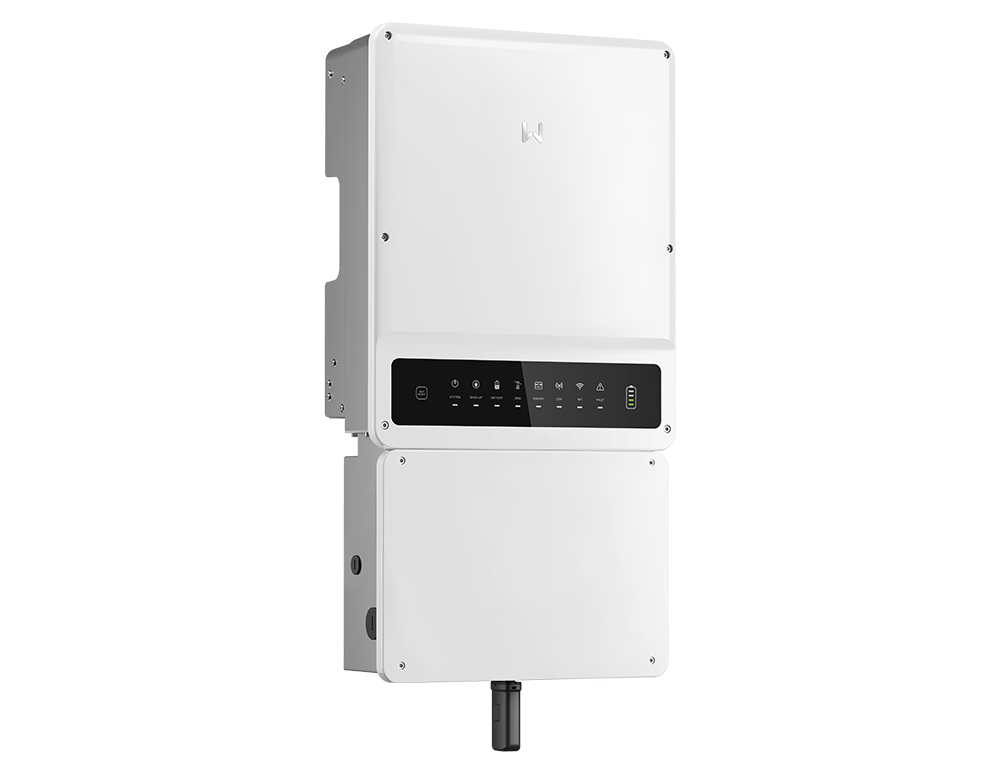

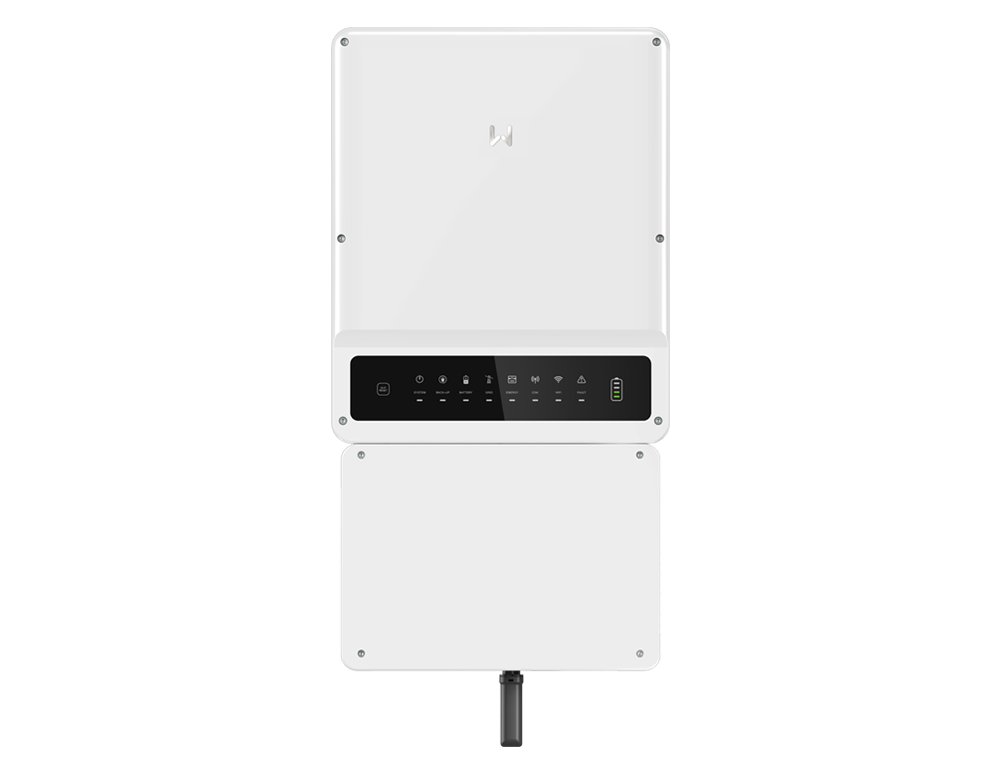

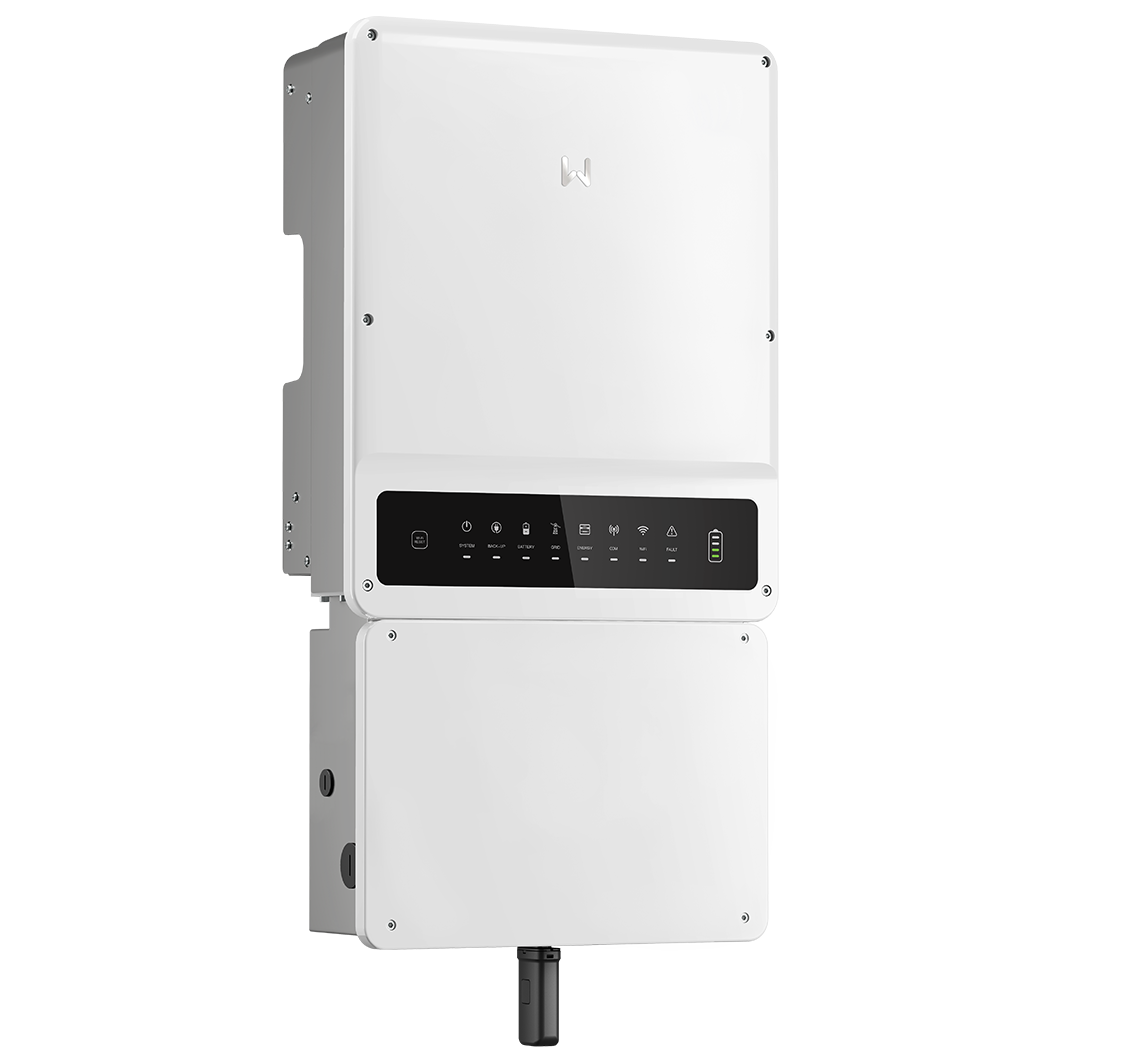

A-BP Series
5-9.6kW | Split phase | AC-coupled retrofit inverter (HV)
DOWNLOAD PDF >>
Micro-grid Applications
Whole Home Backup
GoodWe’s A-BP Series is designed to supplement an existing on-grid PV system and connect with high voltage batteries to seamlessly upgrade to a full storage system. The inverter can boost the PV system without the grid, ensuring the on-grid inverter stays connected if the grid is compromised. With frequency shifting, the A-BP can regulate the output power of the on-grid inverter and change the AC frequency to prevent over charging the battery. With an inbuilt smart meter and plug & play AC connectors, the inverter is easy to install. The A-BP can support whole home backup and is compatible with various brands of on-grid inverters.
Micro-grid Applications
Whole Home Backup
Ultra Rapid Charge
Frequency Shifting
Smart Meter Integrated
Micro-grid Applications
Whole Home Backup
Micro-grid Applications
A-BP Series supports micro-grid applications, ensuring the on-grid inverter stays connected in case of grid failure. It is compatible with any brand of on-grid inverter.
Whole Home Backup
All the loads in the house can be connected to the backup side, ensuring power supply for all loads if the grid is compromised.
OVERVIEW
Model
GW5000A-BP
Battery Voltage Range (V)
80~495
Max. Charging Current(A)
50
Max. Discharging Current (A)
50
Output Voltage Range (V)
211 to 264 @240
Protection Degree
NEMA Type 4X
Model
GW6000A-BP
Battery Voltage Range (V)
80~495
Max. Charging Current(A)
50
Max. Discharging Current (A)
50
Output Voltage Range (V)
211 to 264 @240
Protection Degree
NEMA Type 4X
Model
GW7000A-BP
Battery Voltage Range (V)
80~495
Max. Charging Current(A)
50
Max. Discharging Current (A)
50
Output Voltage Range (V)
211 to 264 @240
Protection Degree
NEMA Type 4X
Model
GW7600A-BP
Battery Voltage Range (V)
80~495
Max. Charging Current(A)
50
Max. Discharging Current (A)
50
Output Voltage Range (V)
211 to 264 @240
Protection Degree
NEMA Type 4X
Model
GW8600A-BP
Battery Voltage Range (V)
80~495
Max. Charging Current(A)
50
Max. Discharging Current (A)
50
Output Voltage Range (V)
211 to 264 @240
Protection Degree
NEMA Type 4X
Model
GW9600A-BP
Battery Voltage Range (V)
80~495
Max. Charging Current(A)
50
Max. Discharging Current (A)
50
Output Voltage Range (V)
211 to 264 @240
Protection Degree
NEMA Type 4X
